Mida la intensidad de irradiancia en su sistema fotovoltaico con precisión y a un precio asequible con los robustos sensores de irradiancia solar de silicio (sensores Si) de IMT Technology.

El diseño del elemento sensor es similar al de un módulo fotovoltaico; esto significa que su respuesta espectral (SR) y su modificador de ángulo de incidencia (IAM) son altamente comparables. En consecuencia, estos sensores son ideales como referencia para el monitoreo de sistemas fotovoltaicos.

Type	Measurements	Notes	Bild
Si-RS485TC-T-MB	1. Solar irradiance 2. Cell temperature	––
Si-RS485TC-2T-MB	1. Solar irradiance 2. Cell temperature 3. Ambient temperature	Firmly connected ambient temperature sensor  (3 m connection cable). Optional Shield-Tamb-Si as a  weather and radiation protection
Si-RS485TC-T-Tm-MB	1. Solar irradiance 2. Cell temperature 3. PV module temperature	Firmly connected module temperature sensor  (3 m connection cable)
Si-RS485TC-2T-v-MB	1. Solar irradiance 2. Cell temperature 3. Temperature (PV modul or ambient temperature) 4. Wind speed	Two waterproof connectors for one temperature sensor and  one wind speed sensor. To order separately • External sensors with preconfigurated plug • Optional Shield-Tamb-Si as a weather and radiation protection

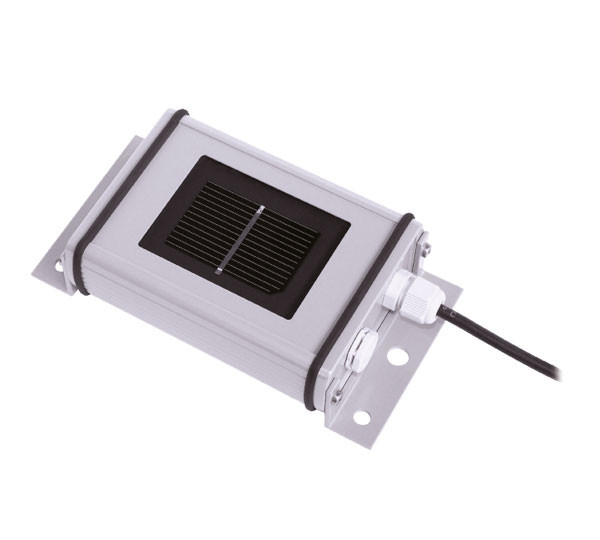

Si-RS485TC-3T-MB	1. Solar irradiance 2. Cell temperature 3. Temperature 1 (PV modul or ambient temperature ) 4. Temperature 2 (PV modul or ambient temperature)	Two waterproof connectors for two temperature sensor  (for example Tmodul-Si and Tamb-Si). To order separately • External sensors with preconfigurated plug • Optional Shield-Tamb-Si as a weather and radiation protection
